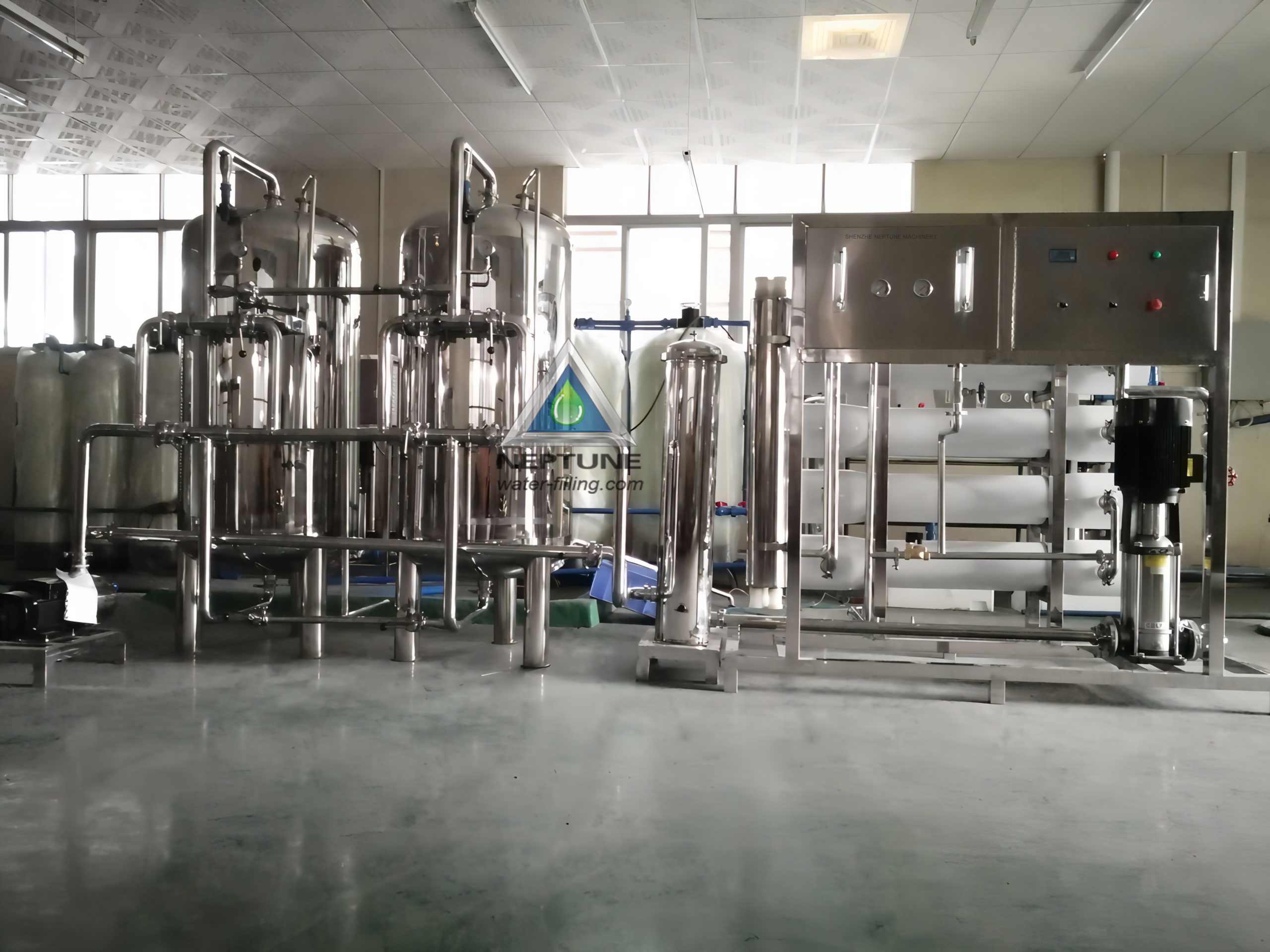

RO water purification machine for producing purified water . Its capacity is 8000L/H.
The water is first being removed the suspended matter, micelle and other impurity by the quartz sand filter. Then it is being got rid of the organic substance, chlorine, chroma, and etc by the filter. The above device compose the consummate pretreatment system. The water which is being pretreated reaches the requirement of the RO system. So as to make the RO equipment run stably during a long period.
Technical parameters of 8000lph RO water purification
1). Capacity of producing water: 8000L/h(25℃)
Notice: The capacity change with the water temperature; mostly, if the water temperature drops every 1℃, the capacity decreases 3%.
2).The pressure of entering water: <0.4 Mpa
3). Conductivity of entering water: <500µS/cm
4). Working pressure of RO: 215Psi(1.50 MPa)
5). Rate of reclamation: 50-70%
6). General power: 6.5KW(Three-phase 380V,50Hz)
Equipment list of 8000LPH RO water purification machine
The original pump | Nanfang Pump Optional Grundfos Pump | CHL16-30 | 1SET |
Quartz sand filter | Fiber Glass Tank(FRP) Optional stainless tank | Ф1000×2600 | 1SET |
Active carbon filter | Fiber Glass Tank(FRP) Optional stainless tank | Ф1000×2600 | 1SET |
Precision filter | SUS304 | Ф330×1000×δ1.5 | 1SET |
RO unit | |||
Membrane shell | Glass Steel(FRP) | 8080 | 3SET |
Membrane | Dow | BW30-400FR | 6SET |
Multistage Pump | Nanfang Pump Optional Grundfos Pump | CDL8-160 | 1SET |
Conductivity Monitor | Made in china | 2SET | |
PH | Made in china | PH540 | 1SET |
Flow meter | Suzhou | 10T | 2SET |
Solenoid valve | Made in china | DF32 | 1SET |
Stainless steel chassis | SUS304 | 1SET | |
UV system | 40W UV Sterilization assembly | 6SET | |
SOZ-YOW-G 40G All in one ozone generator system | SOZ-YOW-G 40G All in one ozone generator system | 1SET |
